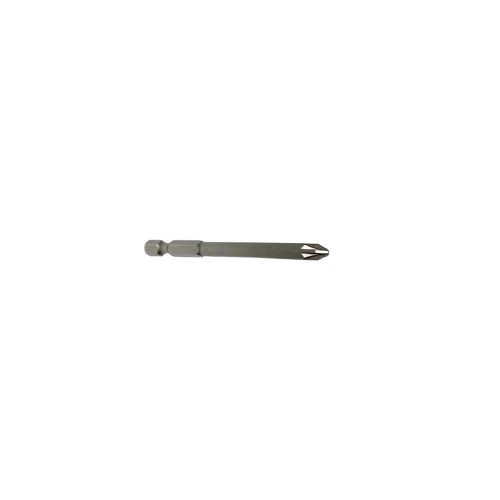

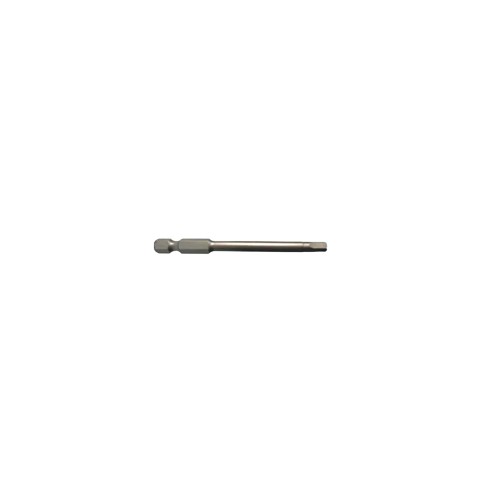

75mm Power Bits
? As cordless, electric and pneumatic drills have increased in performance, it is important to use a high-quality bits to effectively transmit power yet minimize cam-out and fastener stripping
? Durable alloy steel for lasting performance
? Forged and machined for strength and precise fastener fit
Description
Single-end driver bits are widely applied in industrial and construction job site circumstances:
-3 major raw material options: Cr-V steel, ordinary S2 steel or Taiwan S2 steel
-CNC precision milling for tight grip and cam-out prevention
-Variety of surface treatment options: sandblasted, Manganese Phosphate, TiN coating, ZrN coating, Diamond Tip, Mirror Finish, Cr-plating, Vintage Bronze, etc.
? Specifications
| Item | Tip Size | Length | D |
| DBS6PH175 | PH1 | 75MM | 5mm |
| DBS6PH275 | PH2 | 75MM | 6mm |
| DBS6PH375 | PH3 | 75MM | 6mm |
| DBS6PZ175 | PZ1 | 75MM | 5mm |
| DBS6PZ275 | PZ2 | 75MM | 6mm |
| DBS6PZ375 | PZ3 | 75MM | 6mm |
| DBS6SQ075 | SQ0 | 75MM | 3.5mm |
| DBS6SQ175 | SQ1 | 75MM | 4mm |
| DBS6SQ275 | SQ2 | 75MM | 5mm |
| DBS6SQ375 | SQ3 | 75MM | 6mm |
| DBS6T675 | T6 | 75MM | 2.5mm |
| DBS6T775 | T7 | 75MM | 2.7mm |
| DBS6T875 | T8 | 75MM | 2.9mm |
| DBS6T975 | T9 | 75MM | 3.1mm |
| DBS6T1075 | T10 | 75MM | 3.2mm |
| DBS6T1575 | T15 | 75MM | 3.8mm |
| DBS6T2075 | T20 | 75MM | 4.5mm |
| DBS6T2575 | T25 | 75MM | 4.8mm |
| DBS6T2775 | T27 | 75MM | 5.5mm |
| DBS6T3075 | T30 | 75MM | 6mm |
| DBS6T4075 | T40 | 75MM | / |
| DBS6H1575 | H1.5 | 75MM | 2.5mm |
| DBS6H2075 | H2 | 75MM | 3mm |
| DBS6H2575 | H2.5 | 75MM | 3.5mm |
| DBS6H3075 | H3 | 75MM | 4mm |
| DBS6H4075 | H4 | 75MM | 5mm |
| DBS6H5075 | H5 | 75MM | 6mm |
| DBS6H6075 | H6 | 75MM | / |
| DHS6H1575 | H3/32 | 75MM | 3mm |
| DHS6H2075 | H7/64 | 75MM | 3.5mm |
| DHS6H2575 | H1/8 | 75MM | 4mm |
| DHS6H3075 | H9/64 | 75MM | 4.5mm |
| DHS6H4075 | H5/32 | 75MM | 5mm |
| DHS6H5075 | H3/16 | 75MM | 6mm |
| DHS6H6075 | H1/4 | 75MM | / |
